Yongcheng Xingye Company loactes in Beijing of China, which produces 38 types of profiled metal sheets, which are mainly divided into single panels, color steel sandwich panels, floor support panels, etc. The product YX25-210-840 profiled metal sheet is widely used as the roof top plates and large-span top plates.
Color steel plates, which are covered with organic coating, are divided into single panels, color steel sandwich panels, floor support panels, etc. YX25-210-840 profiled metal sheet is one type of the single panels. Beijing Yongcheng Xingye Steel Construction Co. Ltd has the factory which is specialized in producing various types of metal sheets for building cladding system.
YX25-210-840 profiled metal sheet is widely used as the roof top plates and large-span top plates. In short it is called as V840. The longitudinal edges of the product overlap with each other, and the boards are naturally overlapped and connected to the structure through fasteners. The product has high strength, excellent corrosion resistance, and high elongation, which can meet needs of various building.
The raw material width of the YX25-210-840 profiled metal sheet is 1000mm. The surface of the steel plate is pre-treated with hot-dip Al-Zn coating. Then the organic paint is coated and baked. Finally, the pre-painted steel sheet is cured to form the color steel plate. After processing the effective covered width of the product is 840mm. The wave height is 25mm, and the wave spacing is 210mm. The common thickness of the product is 0.3-0.6mm.
This products can reduce the number of splices during installation, thereby improving construction efficiency and reducing construction costs. In addition, its structure is stable and can withstand certain wind and snow loads.
The length of the YX25-210-840 profiled metal sheet could be customizable. There are different colors for options including red, blue, white, gray, or any other colors you want. With the characters such as rich color and excellent texture, the product V840 can add a beautiful appearance to buildings.

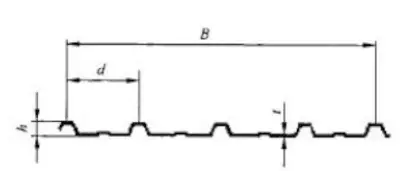

B: Width of the profiled steel sheet, 840mm;
d: Width of the wave, 210mm;
h: height of the wave, 25mm;
t: thickness of the steel sheet, 0.3~0.6mm
